Ajax module ocBridge Plus 000001152 9990000000296
Prece tiek piegādāta no Lietuvas noliktavas.

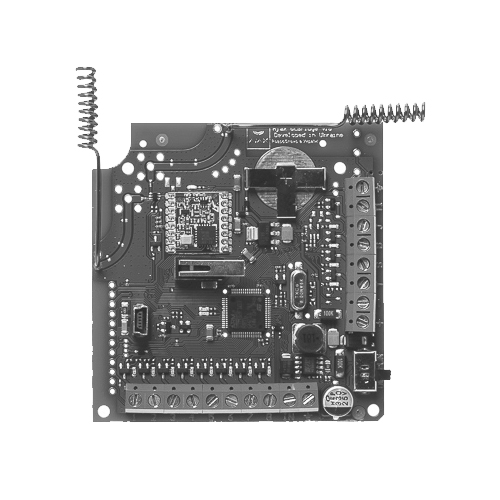

Ajax ocBridge Plus – module for integration with wired and hybrid security systems.
Ajax ocBridge Plus turns any wired security system into a wireless one by giving it access to the advantages of Ajax detectors, while antenna diversity and frequency hopping provide additional protection from radio noise or jamming.
Maximum performance:
Jeweller wireless technology allows for expanding to a network of devices up to 2,000 meters away in open space or across several floors of a business center. Supports 8 security areas and 4 service areas. Can work with up to 100 devices simultaneously.
Protection from intruders and failure:
Uses authentication to protect against fraud. Jamming detection, frequency-hopping. Antenna diversity and frequency hopping provide additional security. Uses an encrypted connection.
Effortless operation:
Detectors are customizable using a radio channel. Securely maintains a history of all events. Pings every 12-300 seconds to monitor the system.
Simple professional-level installation:
Connects to a third-party security system using 12 transistor outputs. Connects to a PC through USB and is customizable through a Windows configuration tool. The quality of the connection and device detection area can be tested remotely.
Technical specification:
Use: Indoor
Radio signal power: 25 mW
Communication protocol: Jeweller (868.0-868.6 MHz)
Maximum distance between detector and ocBridge: Up to 2,000 m (6,552 ft) (in open area).
Maximum number of connected devices: 100
Detection of jamming: Yes
Detector performance monitoring: Yes
History of alarms and service events: Yes
Connection of external antenna: Yes
Software update: Yes
Number of wired outputs/inputs: 13 (8+4+1)/1
Power supply type: +/- connectors; miniUSB (only when configuring ocBridge)
Power supply voltage: DC 8 – 14 V; miniUSB 5 V (only to configure the system).
Operating temperature range: From -20°C (-4°F) to +50°C (+140°F)
Operating humidity: Up to 90%
Dimensions: 95x92x18 mm (3.74×3.62×0.70 in) (with antennas)
Components:
CR2023 battery (pre-installed, for backup)
Manual
