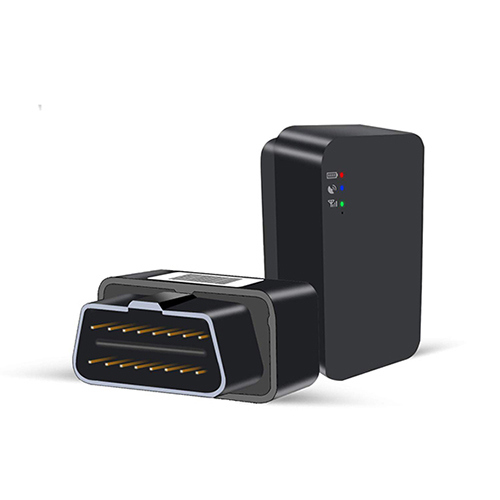

Car GPS tracker for OBD socket OB22 9990000250035
Prece tiek piegādāta no Lietuvas noliktavas.
Car GPS tracker for OBD socket.
OB22 is an easy to fit plug & play OBD port tracker with superior location, tracking, reporting, logging, and security capabilities. Utilizing the GSM and GPRS communication network along with GPS technology, it is an ideal solution for leased vehicles or large fleets.
Note!Works with the Tracksolid app (Windows, Android, iOS). Free for one year.
Features:
Compact design
Real-time tracking
Unplugged alert
Plug and play
Voice monitoring
GSM Specification:
GSM frequency: 850/900/1800/1900 MHz
GPRS: Class 12, TCP/IP
Memory: 32+32Mb
Phase error: RMSPE<5,PPE<20
Max output: GSM850/GSM900:33±3dBm
GSM1800/GSM1900:30±3Bm
Max frequency error: ±0.1ppm
GPS Specification:
GPS chipset: MTK high sensitivity chip
Frequency: L1,1575.42MHz C/A code
GPS channel: 66
Location accuracy: <10 meters
Tracking sensitivity: -165dBm
Acquisition sensitivity: -148dBm
TTFF (open sky): Avg. hot start<1sec
Avg. cold start<32sec
Others:
Antenna: Bullit-in GPS antenna, GSM quad-band antenna
Battery: 50mAh/3.7v lithium-polymer battery
Working voltage/current : 9-36VDC/32mA(12VDC)
Connector: OBD standard port
Standby current: <5mA
Operating temperature: -20C~ 70C
Dimensions: 45.0(L)*22.5(W)*30.0(H)mm
Weight: 30g
LED indicator: Power, GPS, GSM
Voice monitoring range: <5meters
Warranty: 24 months
Manufacturer: Eurodigital, EU
