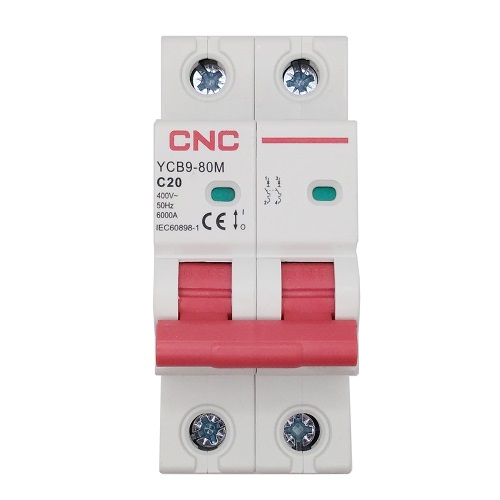

Miniature Circuit Breaker, 2P, 20A, Class C, 6kA NV821501 6942034315405
Prece tiek piegādāta no Lietuvas noliktavas.
Miniature Circuit Breaker, 2P, 20A, Class C, 6kA
Features:
Protection against overload. Short circuit protection.
Anti-mistake contact terminal block.
Flame retardant, high temperature resistance and impact resistance.
Contact position indication (red indicated closed, green indicates opened).
Specifications:
Number of contacts: 2.
Rated current (In): 20 A.
Class: C.
Rated voltage (Ue): AC 400 V.
Insulation voltage (Ui): 500 V.
Rated frequency: 50/60 Hz.
Rated breaking capacity (Icu): 6000 A.
Rated impulse withstand voltage (Uimp): 6000 V.
Mechanical life: 20000 times.
Electrical life: 8000 times.
Safety class: IP20.
Terminal connection type: cable / pin-type busbar.
Wire/busbar cross-sectional area: up to 25mm² / 18-3 AWG.
Connection: from top and bottom.
Installation: on DIN rail EN 60715 (35mm) by means of fast clip device.
Operating temperature: -5°C~+40°C (with daily average <35°C).
Storage temperature: -25°C~+70°C.
Dimensions: 85.5 x 78.8 x 36 mm.
Standards: IEC 60898-1 / EN 60898-1.
Warranty: 24 months.
